product description

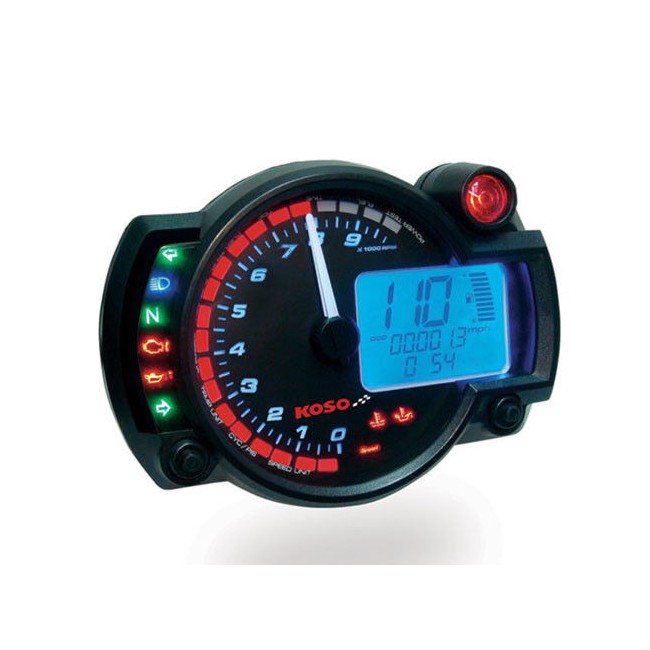

HighEnd motobike cockpit in MotoGP-Style
homologized with CE-sign for legal street using!
includes speedo, rpm meter and several other functions
SPEEDO:
- universal digital speedo
- speedo signal will indicated on a rotating part (for instance wheel or brake disc) converted by the wheel-circumference
- switching km/h and mph gauge
- display up to 360km/h
- top speed memory function
- adjustable speed limit warning light
RPM-meter:
- digital rpm meter with analogue display
- rpm signal will indicated directly on the crankshaft-sensor OR on the CDI-unit OR on the ignition wire
- available with 10.000 or 20.000 rpm display and with white or black background, please choose
- 2stroke AND 4 stroke / one-cylinder AND mult-cylinder
- adjustbale shifting-light
- max. revolution memory
additional features:
- temperature gauge for cooling sytem incl warning light - several display modes for that information
- temperature gauge for oil sytem incl warning light - several display modes for that information
- fuel gauge incl warning light
- control lights for both turning lights + high beam + neutral gear position + programable functions
- clock 24h
- several memory functions
- several odometers
- EOBD* light (EOBD = european on board diagnose)
- 12V supply voltage
- dimensions: appr. 130x100x40mm
- version with rpm gauge up to 10.000rpm
- availabel with white and black rpm guage background, please choose
| speed unit | km/h or mph |
| speedometer range | 0 - 360 km/h (0 - 223 mph) |
| odometer | display range: 0 - 99999,9 km (Meilen) |
| trip 1 + 2 | display range: 0 - 999,9 km (Meilen) |
speed warning setting range |
adjust range: 30 - 180 km/h (20 - 110 mph) |
| top speed memory | 0 - 360 km/h (0 - 223 mph) |
tire circumference setting |
adjust range: 300 - 2.500 mm |
rpm - meter |
display range: 0 - 10.000 U/Min |
shift light setting |
adjust range: 0 - 10.000 U/Min |
| max. rpm record | 0 - 10.000 U/Min |
stroke & piston setting |
2-stroke: 1...4 cylinder |
| temperature unit | °C or °F |
digital water temperature range |
display range: 0 - 250°C (32 - 482°F) |
| temperature level gauge display | display range: 20 - 120°C (68 - 248°F); |
digital oil temperature gauge |
display range: 0 - 250°C (32 - 482°F) |
over temperature (water or oil) |
adjust range: 60 - 120°C (140 - 248F) |
| max. temperature gauge | 0 - 250°C (32 - 482°F) |
| fuel gauge | display in 10 levels (each one 10%) |
fuel sensor |
100 or 510 Ohm |
fuel warning setting |
adjust range: 10 - 50% |
| clock | 24-hour |
| control lights | turning light (green) high beam (bue) oil (red) OBD (orange) neutral shift (green) speed (red) |
incl. mounting kit - cable wire - sensors for speed / temperature ... (no fuel sensor!)
