KOSO DB-03 motocycle cockpit
Product.Nr.: KO-BA038010
Manufacturer: KOSO
EUR 185,95
incl. 19 % VAT
product description
DB-03 is the "largest" member of the DB-type motocycle cockpit familiy. It includes some interesting new features.

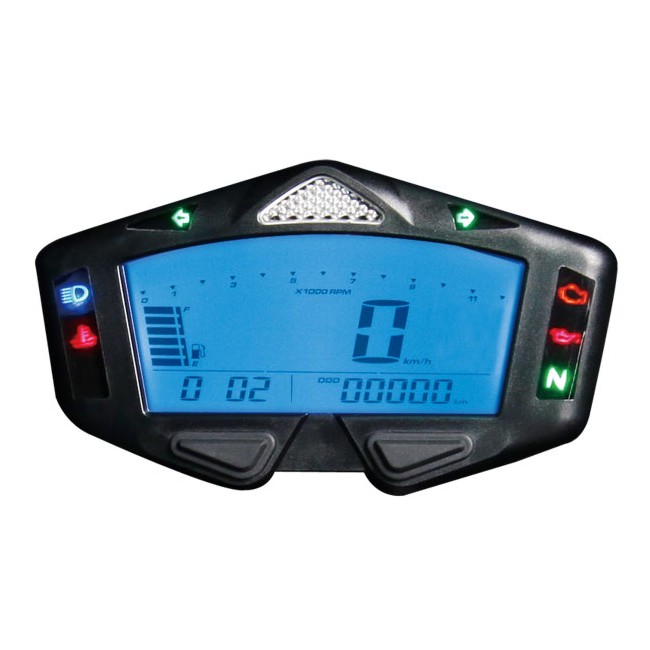

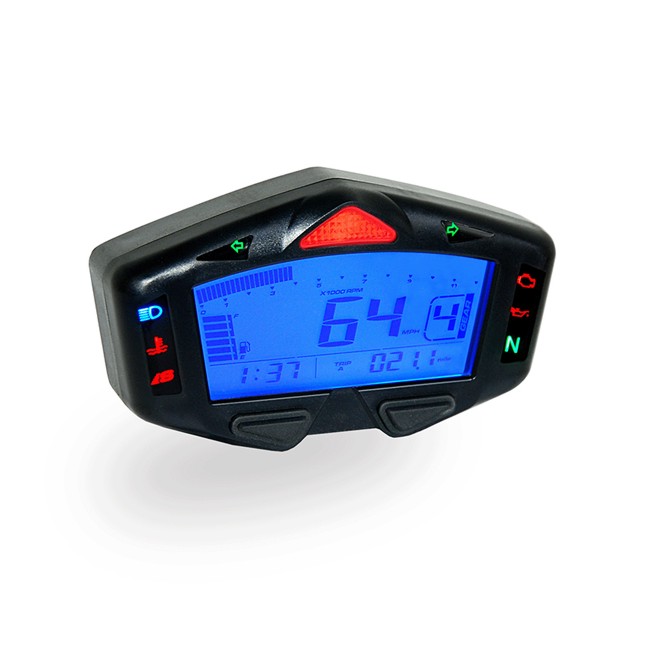

These speedo is equipped with a small and robust case made in plastic. The central display includes speedo, rpm meter, odometer and 2 tripmeters, thermometer, fuelmeter, hour meter, clock and voltmeter. The Display unit is illuminated, brightness and colour of the illumination are adjustable. The available display colour options are: blue, orange & light purple.
The bar graph rpm meter is adaptable to different rpm ranges, so you can use it on a single or multi-cylinder bike without problems. Programmable central shifting light is included. Furthermore there is an an digital gauge installed. There you can change between the rpm gauge and speed gauge.
Around the central display unit the following control lights are alligned: high beam - repeater - an adjustable 2-stage shifting light - gear indicator - EOBD - oil - an adjustable temperature warning light

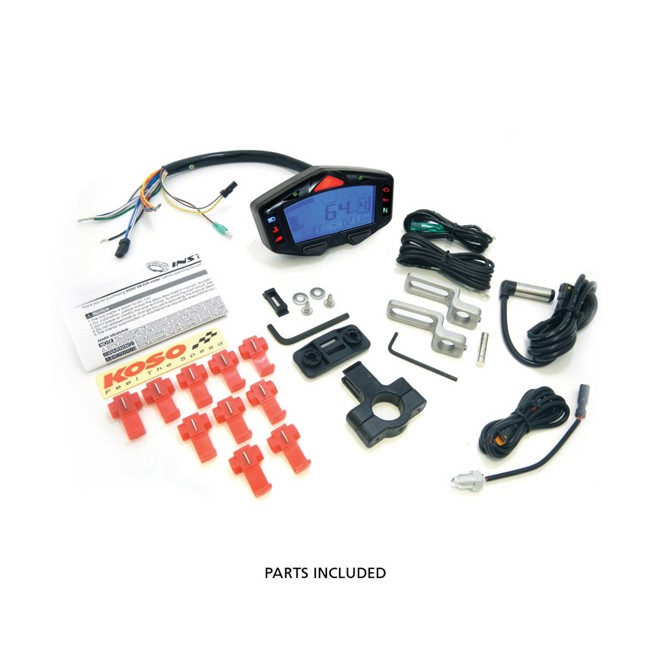

mounting instructions are in english language, incl all sensor (exceptional fuel sensor!) and wiring for rpm meter and speedo gauge
CE approval for legal use at public roads
all functions in detail:
| speedometer | unit: 0 – 360 km/h (0-225 MPH) refresh rate <0,5 sec |
| tire circumference | range: 300 – 2500 mm unit: 1mm sensor points: max 20 |
| odometer | range: 0 – 99999km/ miles automatic reset after 99999 km/ miles unit: 1km/ miles |
| tripmeter A/B | range: 0-999,9km/ miles automatic reset after 999,9km/ miles unit: 0,1km/ miles |
| rpm meter | bar graph: 10.000 rpm / 166 rpm each segment 12.000 rpm / 200 rpm each segment 15.000 rpm / 250 rpm each segment |
| 2-stage shifting light | range: 1.000 – 15.000 rpm unit: 100 rpm |
| thermometer | range: 0 – 250 °C (32 – 482 °F) unit: 0,1°C (°F) |
| temperature alarm | range: 60°C – 250°c (140°F – 482°F) unit: 1°C (°F) |
| maximal temperature record | range: 0 – 250°C |
| hourmeter, total | range 0 – 99999 hrs |
| hourmeter, resetable A/B | unit 0,0 – 999,9 hrs |
| fuel meter | bar graph with 6 segments sensor: 100/250/510/1200 Ohm |
| voltmeter |
range: 0-18.0V DC |
| dislay illumination | blue orange purple |
| clock | 24 hr display |
| operating temperature | -10°C - +60°C |
| meter standard | JIS D 0203 S2 |

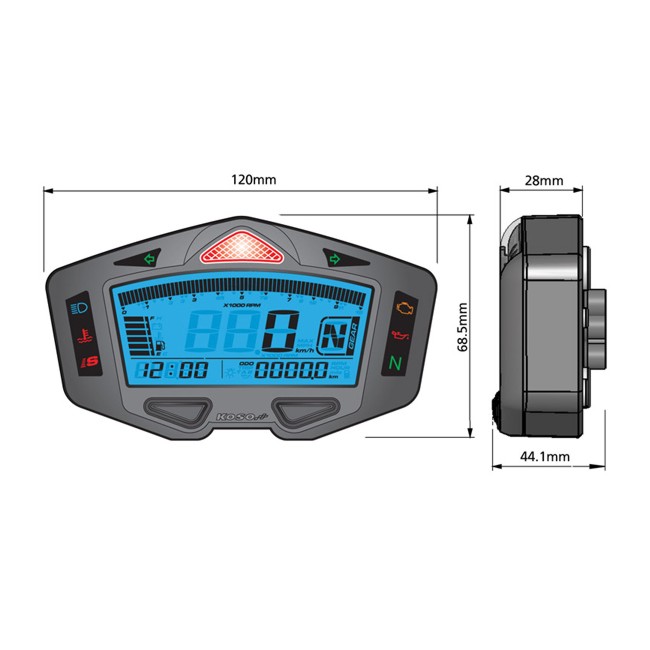

| dimensions | 120 x 70 x 45 mm |
| weight | approx. 130g |
| control lights | high beam (blue) repeater (geen) neutral (green) EOBD (amber) oil (red) temperature warning (red) 2-stage shifting light (red/yellow) |
