product description

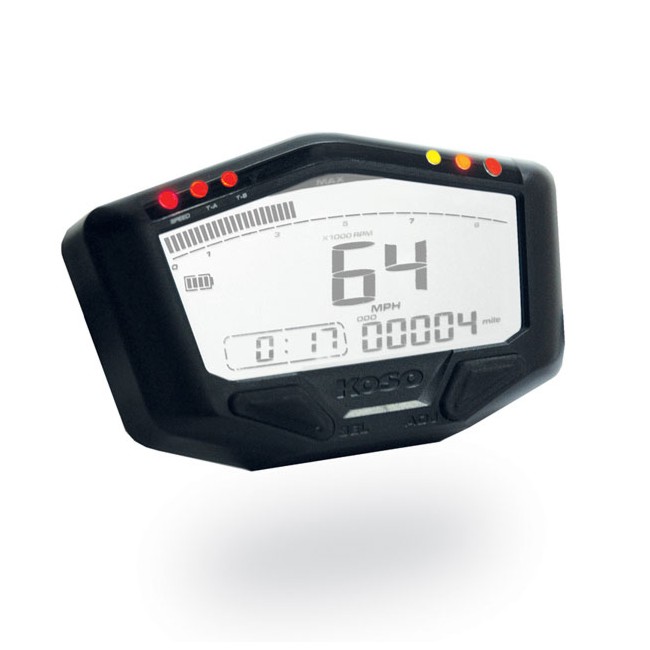

DB-02 type moto cycle cockpit is equipped with an internal battery. This battery powers all the functions exceptional the backlight. Backlight is driven by 12V power supply of the vehicle - if there is no 12V power supply, the speedo will work, but without display illumination!
These speedo is equipped with a small and robust case made in plastic. The bar graph rpm meter is adaptable to different rpm ranges, so you can use it on a single or multi-cylinder bike without problem. Programmable shifting light is included. Furthermore there is an an digital gauge installed. There you can change between the rpm gauge and speed gauge.

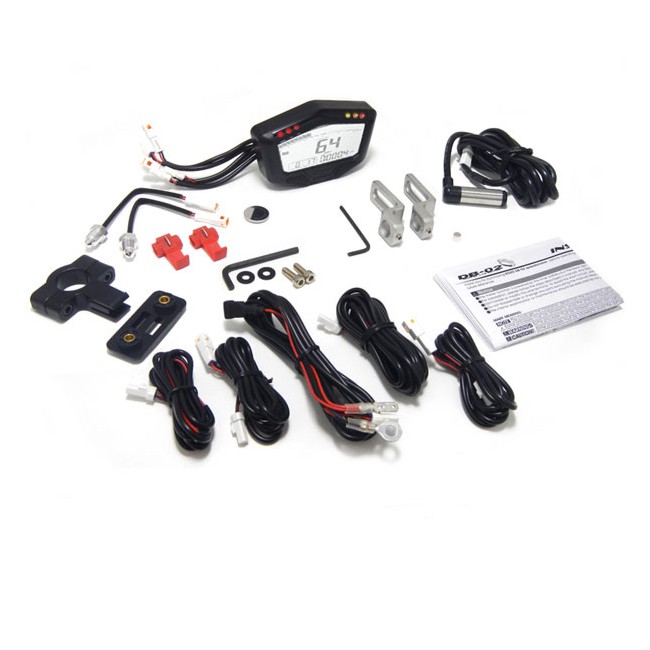

mounting instructions are in english language, incl sensor and wiring for rpm meter and speedo gauge
all functions in detail:
| speed gauge | 0 – 360 km/h (0-225 MPH) |
| display refresh rate | < 0.5 Sek |
| odometer |
0 – 99.999km / mile
|
| trip A/B | 0-999,9km / mile automatic reset after 999,9km / mile Einheit: 0,1km/ Meilen |
| speed limit warn | 30 – 360km/h (19 – 225 MPH) unit: 1 km/h (MPH) |
| maximum speed record | 0-360 km/h (MPH) |
| tire circumference | range: 300 – 2500 mm unit: 1mm maximum number of magnetos: 6 |
| digitaler rpm-meter | 0-20 000 rpm unit: 10 rpm |
| 60 rpm bar-graph | 10 000 rpm / 166 rpm each bar 15 000 rpm / 250 rpm each segment 20 000 rpm / 333 rpm each segment |
| main shifting light | 5000 – 20 000 rpm unit: 100 rpm |
| pre shifting light A / B | 500 – 5000 rpm before main shifting light unit: 100 rpm |
| maximum rev record | 0 – 20 000 rpm |
| hour meter | 0 – 999.9 hours |
| temperature unit | °C / °F |
| temperature gauge A/B: | range: 0 – 250 °C (32 – 482 °F) unit: 0,1°C (°F) |
| temperature alarm A/B | range: 60°c – 250°C (140°F – 482°F) unit: 1°C (°F) |
| maximum temperature record | 0 – 250 °C (32 °F – 482 °F) |
| voltmeter | range: 0-18.0V DC unit: 0,1VD C |
| backlight | white colour, power supply 12V DC |
| battery type | CR2032 |
| clock | 24 hours |
| life time battery | ~ 220 hours |
| standard | JIS D 0203 S2 |

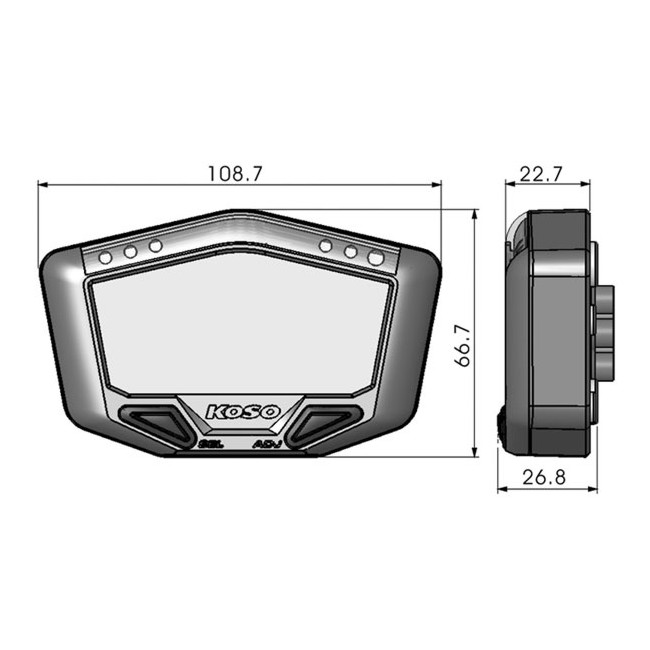

| measurement casing | 100 x 60 x 20 mm |
| weight | ~ 200 g |
| control lights | speed limit: red temperature warning: red pre shifting light A: yellow pre shifting light B: orange main shifting light: redrot |
