KOSO DB-01RN motocycle cockpit
Product.Nr.: KO-BA0041000
Manufacturer: KOSO
EUR 139,95
incl. 19 % VAT
product description
updated version of the DB-01R motocycle cockpit with additional features!

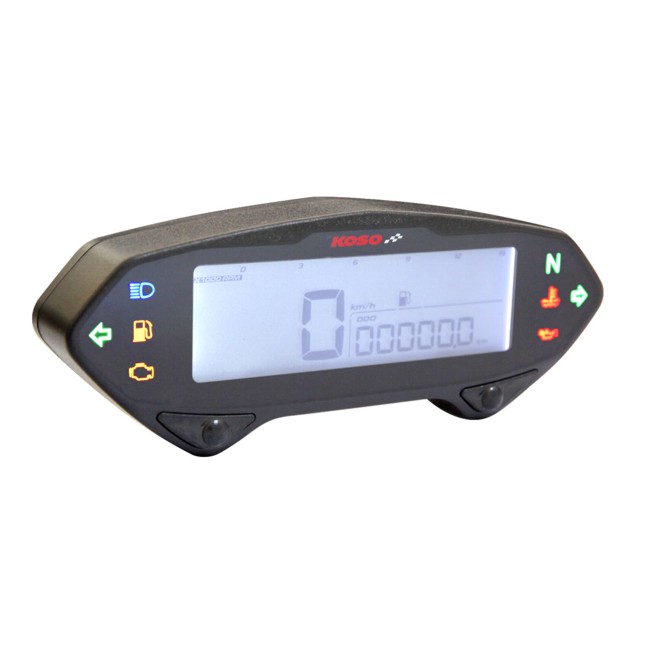

motocycle cockpit with compact case - LCD display shows speed, rpm, odometer and trip, engine hours, clock and fuel level. control lights for turning lights, high beam, oil, neutral-shift, fuel reserve, temperature and EOBD are integrated beside the LCD display.
- 12V power supply required
- speedometer up to 360 km/h / 225 mph
- rpm digital gauge + rpm bar gauge
- adjustable shifting light
- fuel gauge is compatible with a 100 Ω, 250 Ω, 510 Ω or 1.200 Ω fule sensor. Please note: This fuel sensor is not included and it s not available separatly! It should be installed always on the bike.
- hour meter (total engine hours + 2 adjustable engine hour meters)
- clock
- incl manual in english language,
- mounting kit and sensors for speed and rpm
|
speedometer |
km/h or mph
display gauge: 0 - 360 km/h (0 - 223 mph) |
|
odometer |
0 - 99.999 km (m) |
|
trip A+B |
0 - 999,9 km (m) |
|
tire circumference setting |
300 - 2.500 mm |
|
rpm - meter |
digital gauge: 0-15.000rpm bar gauge:0-10.000 / 0-12.000 / 0-15.000 rpm |
| shifting light | setting range: 1.000-20.000rpm |
|
stroke and piston setting |
2-stroke: 1, 2, 3, 4 pistons |
|
fuel gauge |
diplayed as 10 bar diagram |
|
fuel gauge resistance |
100 Ω, 250 Ω, 510 Ω, 1.200 Ω |
| hour meter |
total hour meter: 0-99999,9 hrs adjustable hour meter A+B: 0-9999,9 hrs |
| clock | 12hrs / 24hrs |
| display colour | white |
|
control lights |
turning lights (green) oil (red) |
