product description
KOSOs first multi cockpit in a circular case.
- multifunctional cockpit in ultraslim case
- bar graph rpm meter in the upper part of the central display, you can convert this part into fuel gauge or battery level gauge
- rpm meter with range up to 15.000 rpm
- speed is shown numerical in the central part of the display
- odometer and tripmeter are shown in the lower part of the display
- control lights are integrated in the lower part of the case, they are only visible when flashing

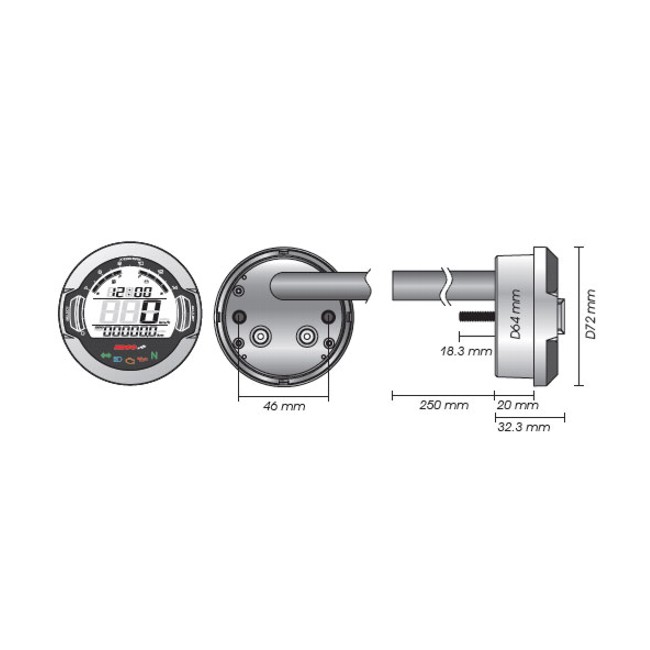

- robust case with diameter of 64mm and depth of 20mm

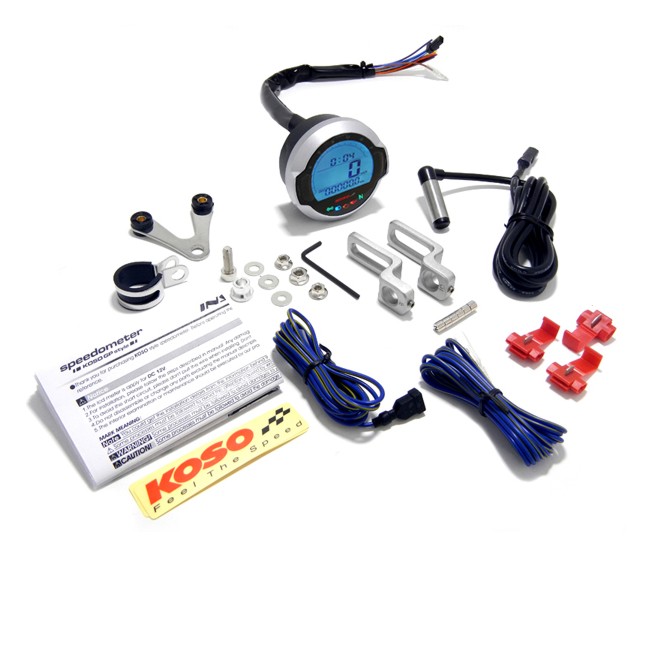

- speedo is using a electronical signal,there is no speedo shaft required - all sensors are included, exceptional the fule tank sensor - optionally there are speed signal adapters for the conventional speedo drive & shaft available
- CE approval for legla use at public roads
- manual in english language
- all function in detail:

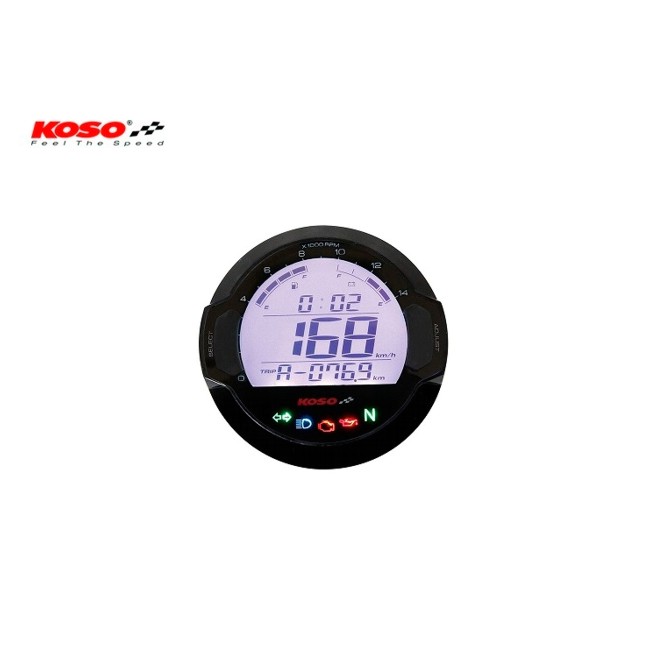

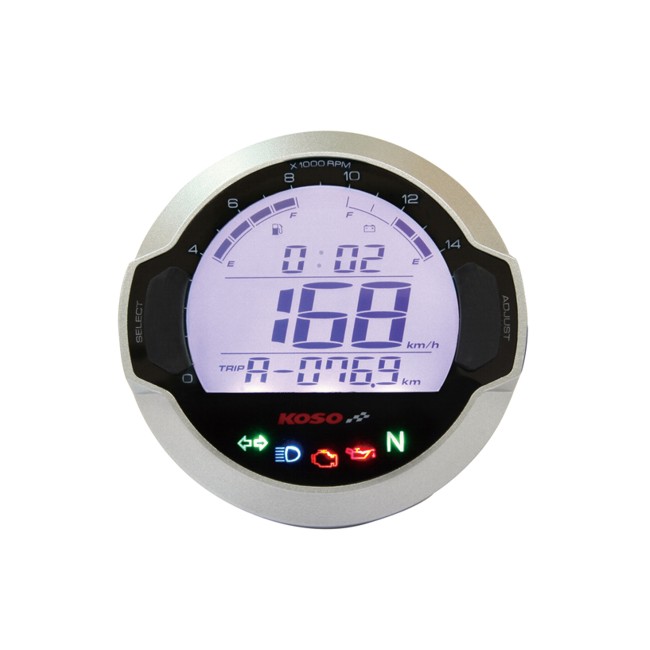

- avialable with black or white casing, please choose
| speedometer | diplay range: 0 – 360 km/h (0-223 MPH) display unit: km/h or mph |
| odometer | display range: 0 – 99999,9 km/ miles automatic reset after 99999 km/ miles unit: 0,1 km/ miles |
| tripmeter A/B | display range: 0-999,9km/ miles automatic reset after 999,9km/ miles unit: 0,1 km/ miles |
| tire circumference setting | setting range: 300 – 2500 mm setting unit: 1mm sensors: 1-6 |
| fuel meter | 4 bars compatible for fuel sensors with resistance of 100/250/510 orr 1.200 Ohm |
| clock | 24 h |
| voltmeter | display range 5 - 28V DC display with 4 bars, falshes when it leaves the display range |
| display illumination | white backlighted brightness adjustable in 5 levels |
| power supply | 12V DC required |
| weight | approx. 240g |
| telltales |
repater / flasher - green |
